Product name: American standard flange gate valves

Structure: bolted bonnet stem bracket structure

Drive way: hand wheel, gear, electric

Design criteria: API600, API6D

Structure length: ASME B16.10

Connecting flange: ASME B16.5

Test and inspection: API598

Note: the valve connecting flange and butt weld end size can be designed and manufactured according to user requirements.

The company specializes in providing American standard valves and other valves, welcome to the company or individual calls us.

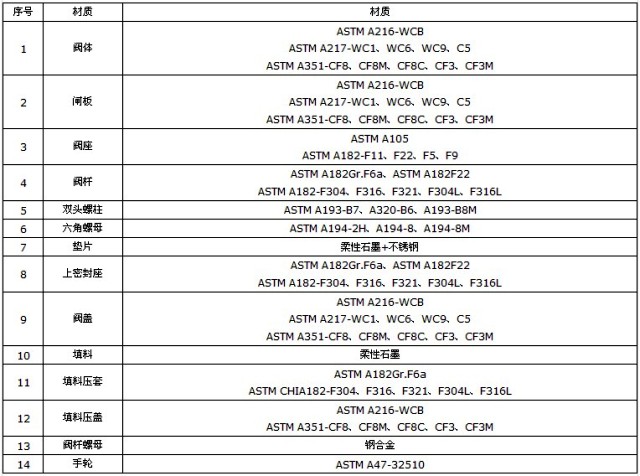

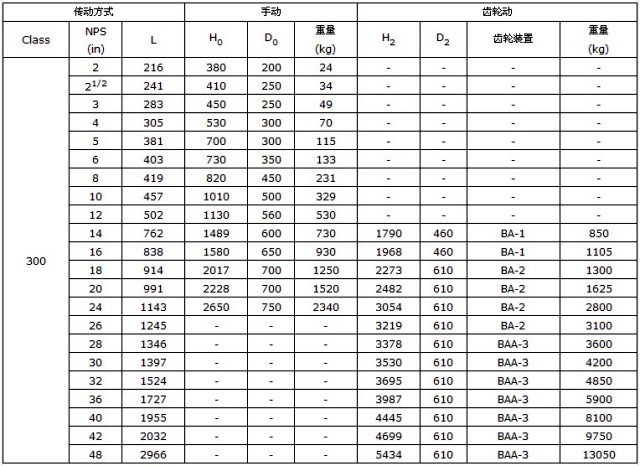

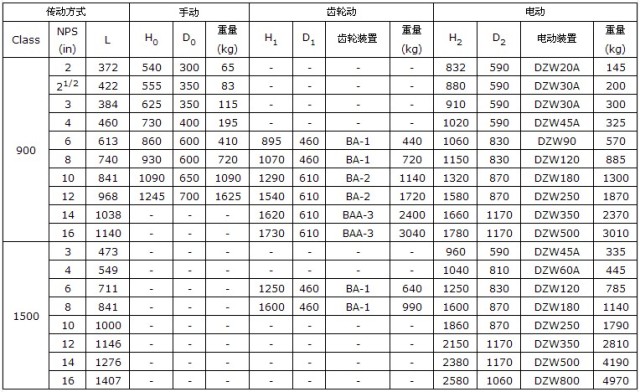

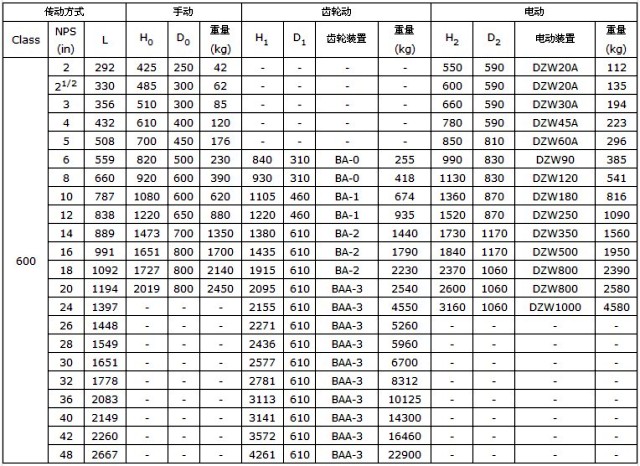

chart
